Tensor

import torch
from torchvision.transforms import Normalize, ToPILImage, Resize
from shared.utils import plot_pil_images

x = torch.randn([1,256,256])
x = x.squeeze()
x.shape

torch.Size([256, 256])

x = torch.randn([3,256,256])
x.shape

torch.Size([3, 256, 256])

torch.unsqueeze(x, 0).shape

torch.Size([1, 3, 256, 256])

x.flatten(1,2).shape

torch.Size([3, 65536])

x.flatten(1,2).mean(axis=1).shape

torch.Size([3])

x = torch.randn([1,256,256])
x.transpose(0,1).shape

torch.Size([256, 1, 256])

torch.manual_seed(12)
x = torch.randn([1,3])
x.max(), x.argmax()

(tensor(-0.0546), tensor(2))

One can index a matrix using notation similar to numpy:

scores = X[torch.arange(X.shape[0]), y]

or using the gather function:

scores = X.gather(1, y.view(-1, 1)).squeeze()

cat vs stack

assert (torch.Tensor([1,2,3]) == torch.tensor([1,2,3])).all()

a = torch.Tensor([1])
b = torch.Tensor([2])
torch.cat([a,b], dim=0)

tensor([1., 2.])

torch.stack([a,b], dim=0)

tensor([[1.],
        [2.]])

torch.stack([a,b], dim=1)

tensor([[1., 2.]])

Element size

a.nelement()

1

a.element_size()  # in bytes

4

Total memory allocation:

a.nelement() * a.element_size()

4

Resize tensor

x = torch.randn([3,256,256])
x1 = Resize([100, 100])(x)
x1.shape

/Users/nenad.bozinovic/mambaforge/envs/blog/lib/python3.10/site-packages/torchvision/transforms/functional.py:1603: UserWarning: The default value of the antialias parameter of all the resizing transforms (Resize(), RandomResizedCrop(), etc.) will change from None to True in v0.17, in order to be consistent across the PIL and Tensor backends. To suppress this warning, directly pass antialias=True (recommended, future default), antialias=None (current default, which means False for Tensors and True for PIL), or antialias=False (only works on Tensors - PIL will still use antialiasing). This also applies if you are using the inference transforms from the models weights: update the call to weights.transforms(antialias=True).
  warnings.warn(

torch.Size([3, 100, 100])

Inverse Normalizer

new_x = (x - mean) / std
x = new_x * std + mean
x = (new_x + mean/std) * std
x = (new_x - mean/std) / (1/std)

inv_std = 1/(std + epsilon)
inv_mean = -mean/std = mean*inv_std

class InverseNormalize(Normalize):
    """
    Undoes the normalization and returns the reconstructed images in the input domain.
    """

    def __init__(self, normalizer):
        mean = normalizer.mean
        std = normalizer.std
        std_inv = 1 / (std + 1e-7)
        mean_inv = -mean * std_inv
        super().__init__(mean=mean_inv, std=std_inv)

    def __call__(self, tensor):
        return super().__call__(tensor.clone())

normalizer = Normalize(mean=torch.Tensor([0.1902, 0.2077, 0.1599]), std=torch.Tensor([0.1060, 0.1060, 0.1071]))

Let’s see an example:

torch.manual_seed(12)
a = torch.ones([3,2,2])
a

tensor([[[1., 1.],
         [1., 1.]],

        [[1., 1.],
         [1., 1.]],

        [[1., 1.],
         [1., 1.]]])

normalizer(a)

tensor([[[7.6396, 7.6396],
         [7.6396, 7.6396]],

        [[7.4745, 7.4745],
         [7.4745, 7.4745]],

        [[7.8441, 7.8441],
         [7.8441, 7.8441]]])

which is the same for a[0,0,0] as:

(1 - 0.1902) / 0.1060

7.639622641509434

Inverse normalizer:

inv_normalizer = InverseNormalize(normalizer)
inv_normalizer

InverseNormalize(mean=tensor([-1.7943, -1.9594, -1.4930]), std=tensor([9.4340, 9.4340, 9.3371]))

Let’s see an example:

torch.manual_seed(12)
a = torch.randn(3,2,2)
a

tensor([[[-0.2138, -1.3780],
         [-0.0546,  0.4515]],

        [[ 0.7858, -1.0884],
         [-0.5599, -0.9336]],

        [[ 0.0479, -0.0844],
         [-0.1471,  0.7590]]])

inv_normalizer(normalizer(a))

tensor([[[-0.2138, -1.3780],
         [-0.0546,  0.4515]],

        [[ 0.7858, -1.0884],
         [-0.5599, -0.9336]],

        [[ 0.0479, -0.0844],
         [-0.1471,  0.7590]]])

torch.allclose(inv_normalizer(normalizer(a)), a)

True

Masking via masked_fill

torch.manual_seed(12)
N = 200
a = torch.rand(3,N,N)
b = torch.cat([torch.ones(N,N//2), torch.zeros(N,N//2)], dim=1).long()

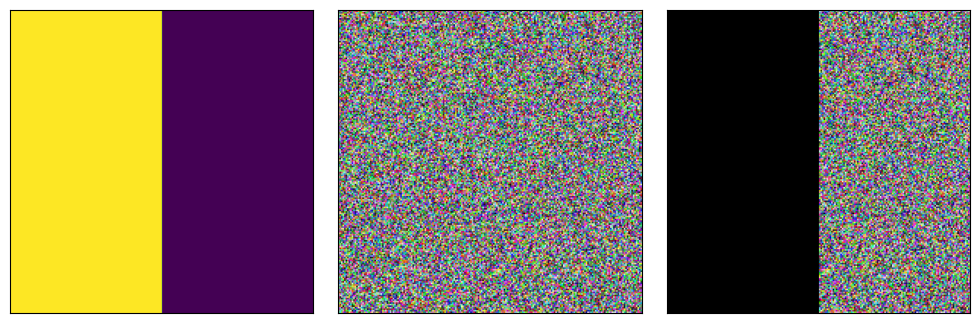

_ = plot_pil_images([ToPILImage()(b.float()), ToPILImage()(a), ToPILImage()(a.masked_fill_(b, 0))])

note that shape of a is {{a.shape}} and shape of b is {{b.shape}} so b was broadcasted in a.masked_fill_(b, 0).

masked_fill works similar in 4 dimensions:

torch.manual_seed(12)
N = 300
a = torch.rand(2,3,N,N)
b1 = torch.cat([torch.ones(N,N//2), torch.zeros(N,N//2)], dim=1).long()
b2 = torch.cat([torch.ones(N,N//3), torch.zeros(N,2*N//3)], dim=1).long()
b = torch.stack([b1,b2])
print(b.shape)
print(a.shape)
b = b.unsqueeze(axis=1)  # this adds channel dimension = 1 that is needed for masked_fill
print(b.shape)
c = a.masked_fill(b, 0)
print(c.shape)

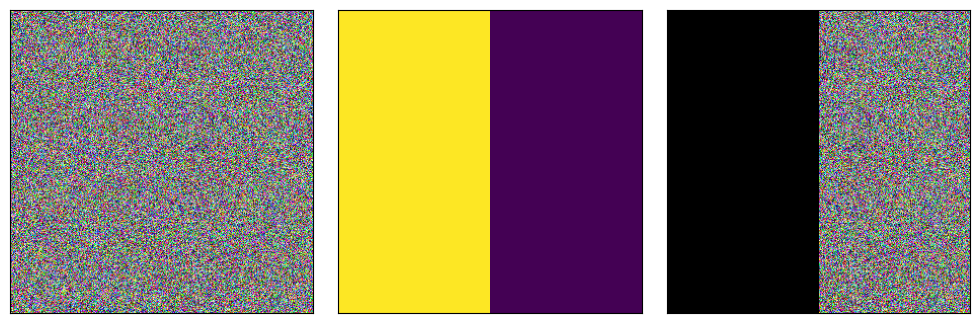

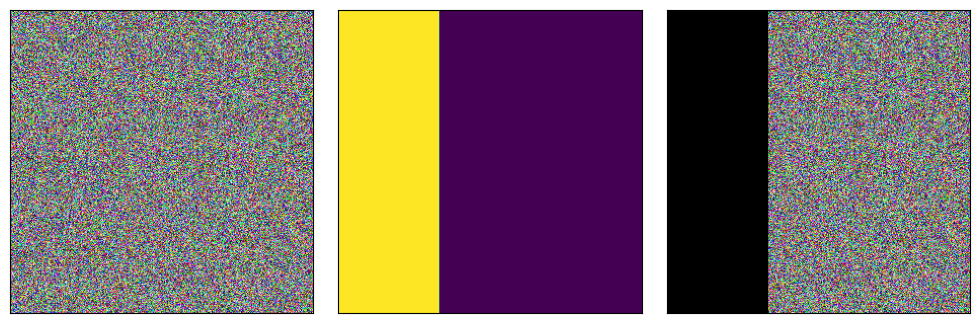

for i in range(2):
    _ = plot_pil_images([ToPILImage()(a[i,:,:,:]),
                         ToPILImage()(b[i,:,:,:].float()),
                         ToPILImage()(c[i,:,:,:])])

torch.Size([2, 300, 300])
torch.Size([2, 3, 300, 300])
torch.Size([2, 1, 300, 300])
torch.Size([2, 3, 300, 300])

Note that we had to add unsqueeze for b to achieve proper broadcasting.

Masked mean and stdev

This is rather useless since final normalization results tend to be similar. Keeping it here in case I need it in the future.

Sometimes we don’t want the mean of the whole image but only of the non-zero values. For that we need to find limit the array to non zero values first then find the mean and stdev. Let’s do this for one image then extend to 3 channels, and finally for a full batch:

n_images = 10
n_channels = 3
imgs = torch.randn([n_images, n_channels, 100,100])

Let’s first flatten tensor:

flatten_imgs = imgs.flatten(2,3)
flatten_imgs.shape

torch.Size([10, 3, 10000])

For one image, one channel:

array = flatten_imgs[0,0,:]

array = array[array > 0]
array.mean(), array.std()

(tensor(0.7873), tensor(0.6029))

For one image, all three channels:

array = flatten_imgs[0,:,:]

means_per_channel = torch.zeros(n_channels)
stdevs_per_channel = torch.zeros(n_channels)
for i in range(n_channels):
    array_per_channel = array[i, :]
    array_per_channel = array_per_channel[array_per_channel>0]
    means_per_channel[i] = array_per_channel.mean()
    stdevs_per_channel[i] = array_per_channel.std()
means_per_channel, stdevs_per_channel

(tensor([0.7873, 0.8032, 0.7925]), tensor([0.6029, 0.5983, 0.5995]))

And now for the whole tensor:

means_per_image_per_channel = torch.zeros(n_images, n_channels)
stdevs_per_image_per_channel = torch.zeros(n_images, n_channels)
for i in range(n_images):
    for j in range(n_channels):
        array_per_image_per_channel = flatten_imgs[i, j, :]
        array_per_image_per_channel = array_per_image_per_channel[array_per_image_per_channel>0]
        means_per_image_per_channel[i,j] = array_per_image_per_channel.mean()
        stdevs_per_image_per_channel[i,j] = array_per_image_per_channel.std()
means_per_image_per_channel, stdevs_per_image_per_channel

(tensor([[0.7873, 0.8032, 0.7925],
         [0.7860, 0.7971, 0.8038],
         [0.7988, 0.8052, 0.8056],
         [0.7989, 0.8025, 0.7976],
         [0.7914, 0.7798, 0.7897],
         [0.7992, 0.8158, 0.7668],
         [0.8038, 0.7937, 0.7977],
         [0.7868, 0.7956, 0.8038],
         [0.7891, 0.8032, 0.7991],
         [0.7872, 0.8016, 0.8135]]),
 tensor([[0.6029, 0.5983, 0.5995],
         [0.5981, 0.5994, 0.6075],
         [0.6066, 0.6124, 0.6055],
         [0.6031, 0.5922, 0.6137],
         [0.5902, 0.6009, 0.6004],
         [0.6131, 0.6234, 0.5902],
         [0.6138, 0.6055, 0.6082],
         [0.5974, 0.5982, 0.6019],
         [0.6044, 0.6084, 0.6079],
         [0.5932, 0.6091, 0.6187]]))
